FSII-TCVR-IP-19

$0.00

FreeSpeak II 1.9GHz Transceiver

  • For use with FSII base station, E-QUE-HX cards and FSII splitters
  • Supports up to 5 FSII 1.9GHz beltpacks per transceiver, or up to 65-90 beltpacks when mixed with FSII 2.4GHz transceivers
  • Up to 10 Transceivers can be connected to one FreeSpeak II base station
  • 1.9GHz transceivers can co-operate with 2.4GHz transceivers on the same system
  • IP-53 rated for water and dust resistance
  • Locally powered or powered via the FreeSpeak II base station or matrix
  • Microphone stand mounting
Compare

Description

  • FSII 1.9GHz IP Transceiver
  • For use with FreeSpeak II 1.9GHz only
  • Requires E-IPA-HX card and an Eclipse HX frame (not available for FSII-BASE-II)
  • Operates over IP on an AES67 compatible network
  • Supports 10 FSII 1.9GHz beltpacks per transceiver
  • Supports up to 64 transceivers on an Eclipse HX matrix system
  • Ethercon RJ45 network connections (2)
  • High speed fiber SFP cages (2)
  • Power-over-Ethernet (PoE) up to 300 ft (90m)
  • Green LED status indicator on top and bottom
  • Mic stand or wall mount orientation (metric and imperial threads)
  • IP-53 rating for wet and dry conditions
Item Part Number:
  • FSII-TCVR-IP-19-US for use in USA and Canada
  • FSII-TCVR-IP-19-EU for use in EU countries
  • FSII-TCVR-IP-19-J for use in Japan

Specifications

Technical Specifications

Frequency Spectrum: 1.88-1.93MHz for EU and US Cellular auto roaming
technology
Modulation: GFSK, TDMA frame 10ms Full and Long slot
Output Power: (EU/Russia) 10dBm average, (US) 18-20dBm

Power

AC Input: 100VAC – 240VAC, 60/50Hz, -1.4A max
Max Power Consumption at 120V: 20W
PoE Class 3: 15.4W at PoE port, 12.95W at device
USB Power Source: 5V, 3A; max power consumption = 12.5W

Environmental

Operating: 32º-125ºF (0º-50ºC)
Storage: 32º-150ºF (0º-70ºC)
Humidity: Between 20% and 90%, Non-Condensing

Mounting

Rear Mic Stand Mounts: Mic stand threaded sockets 5/8” & 3/8”
Safety Harness Attachment
Ball Joint Mic Adapter

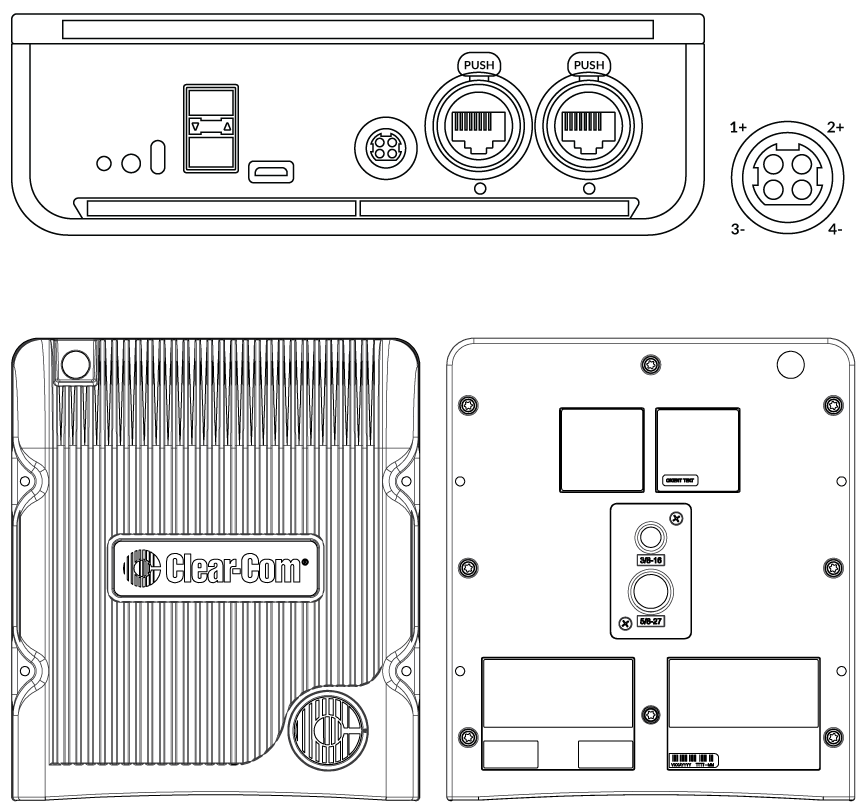

Dimensions

6.75 x 5.5 x 2 in (HxWxD)
(173 x 134 x 52 mm)

Weight

7.0 oz (0.19kg)
