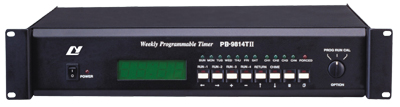

Weekly Programmable Timer

Product ID: PB-9814T
Weekly Programmable Timer
◆ More than 36 (up to 255) timing points can be programmed per day.
◆ 4 programmable timing power supply channel.
◆ Manually changing programmed data is available, anytime alarm activating is available.
◆ Digital display, fully indicate various of working status.
◆ 3 chime types for choosing.
LY INTL ELECLY INTL ELECCompare

Description

Product ID: PB-9814T
Weekly Programmable Timer
Weekly Programmable Timer

Description

◆ More than 36 (up to 255) timing points can be programmed per day.
◆ 4 programmable timing power supply channel.
◆ Manually changing programmed data is available, anytime alarm activating is available.
◆ Digital display, fully indicate various of working status.
◆ 3 chime types for choosing.

Specifications

  • Specification



    Channel capacity
    Main1: 220V, 10A
    Main2: 220V, 5A
    Channel 1,2,3 & 4: 220V, 1A
    Timing
    Programmable, up to 255 timing points per day
    Time format
    24-hour format
    Channels
    4
    Chime types
    3
    Chime level
    300mV
    Alarm signal input
    2 channels, including 1 with linking function
    Alarm level
    0V (short circuit)
    Protection
    20A AC fuse
    Power requirement
    AC 220-240V/50-60Hz
    Packing dimension (mm)
    (L×W×H) 530×440×195
    Product dimension (mm)
    (L×W×H) 530×440×195
    Gross weight
    10kg
    Net weight
    8.3kg

Technical Parameter
