FSII-Base-II Digital KIT

$56.00$1,560.00

FreeSpeak II is a five-channel, full-DIGITAL duplex wireless intercom solution, ideal for large-scale, complex designs or specialized applications.

Add Related Devise From Bellow List & Built Your Own System

$1,715.00 $1,560.00
$1,715.00 $1,560.00
$1,610.00 $1,462.00
$1,610.00 $1,462.00
$1,610.00 $1,462.00
$120.00 $110.00
$551.00 $482.00
$63.00 $56.00
$63.00 $56.00
$63.00 $56.00
Compare

Description

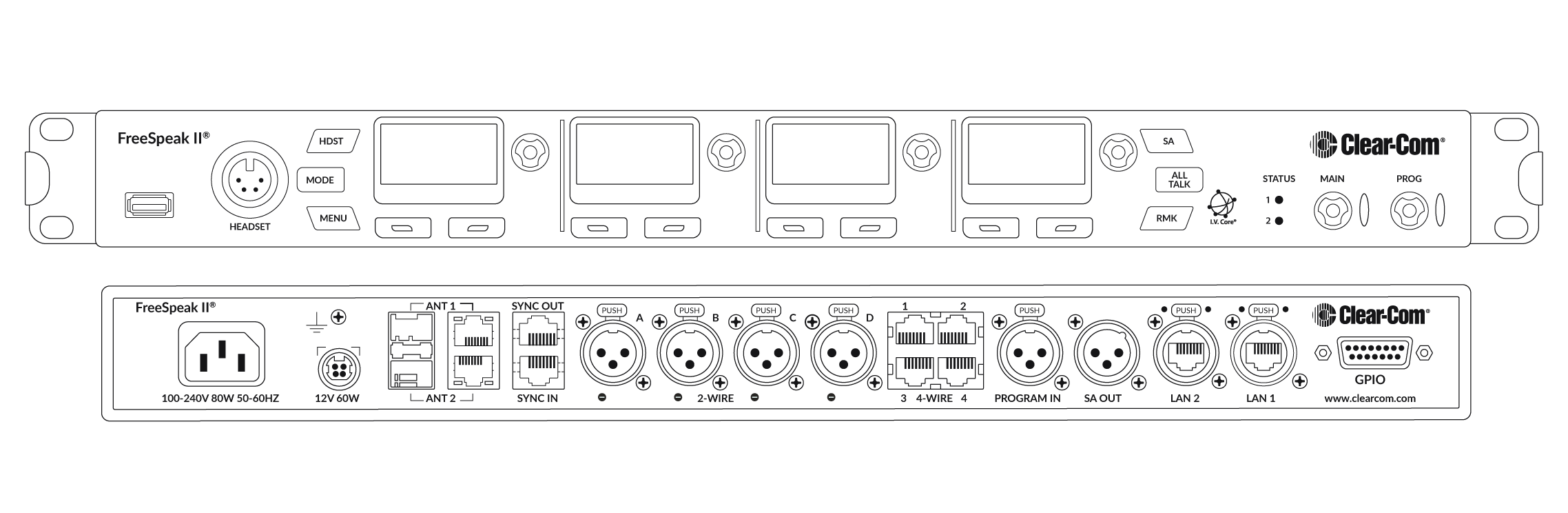

  • FreeSpeak II-Base-II Digital Wireless Base Station
  • Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
  • Routing and configuration of up to 25 FreeSpeak II beltpacks
  • Four 2-wire ports with call signal, auto nulling (Clear-Com and RTS)
  • Supports 2 transceivers natively and up to 10 transceivers via FSII splitter
  • Fiber transceiver connections, supports two fiber-enables FSII splitters
  • Multi-mode user interface has monitoring, setup and main station modes with assignable soft keys
  • GPIOs allow assignment to trigger cue lights, tally or radios
  • Matrix and partyline configurations support up to 12 channels and/or groups
  • DECT Sync ports for optimizing co-located systems
  • RF Audio Filter improves system performance in hard RF environments
  • Browser-based Core Configuration Manger (CCM) with InSite for real-time statistics, beltpack and transceiver diagnostics, and functionality such as Remote Mic Kill
  • Text messaging from CCM to wireless beltpacks
Item Part Number:
  • FSII-Base-II
  • FSII-BASE-II-UPG

1.9 GHz & 2.4 GHz

FreeSpeak II is a five-channel, full-duplex wireless intercom solution, ideal for large-scale, complex designs or specialized applications.

FreeSpeak II® Digital Wireless Intercom Systems

FreeSpeak II is a five-channel, full-duplex wireless intercom solution, ideal for large-scale, complex designs or specialized applications–requiring team members to be untethered and talking in independent channels of communication. After years of field experience and refinement, FreeSpeak II has become the de facto standard for wireless intercom operation in the 1.9GHz and 2.4GHz band across various markets. The exceptional RF performance and reliable connections across the system give users the peace of mind they need for staying connected at every major event, programming, stage performance, critical or mass area operation.

Features and/or Benefits

Designed for Dependability and Performance

The technology driving FreeSpeak II was designed from the ground up to provide the level of dependability and RF performance that professionals demand in different environments. Combining proven RF operations with smart engineering and ergonomic designs, FreeSpeak II delivers an unmatched solution that simply works time and again—even in the most challenging RF environments.

Stay Connected Everywhere

Reliable and flexible cellular roaming technology keeps your users connected and moving freely across an expansive space. Transceivers can be positioned away from the base station or matrix over CAT5 or over a fiber connection. Each Transceiver can create a coverage zone between 300 ft – 500 ft (indoors) or between 800 ft – 1500 ft (outdoor). Up to 10 Transceivers can be strategically placed to create a wide coverage area.

Intercom Your Way

With FreeSpeak II, you have many options with the way you choose to configure, deploy, operate, integrate and use the system and its components. Do you need to operate in 1.9GHz or 2.4GHz or both? Want a standalone system or as a matrix intercom integration? Use it for point-to-point and/or partyline communication? Connect over CAT5 or Fiber? Configure it completely from the base station or on the browser-based Core Configuration Tool? You make the decisions, and we deliver the solution.

Core Configuration Manager (CCM) with InSite

InSite live monitoring and telemetry of Beltpacks and Transceivers provides a better user experience for both audio performance and ease of use for all users. InSite includes tools for technical administrators to track beltpack roaming between cellular Transceivers and quality of service over time, thus helping to tune the system for best operation.

Specifications

Technical Specifications

Base-to-Beltpack Frequency Response: 100Hz – 7.1kHz
No. of Beltpacks per Base Station: 25
No. of Transceiver/ Antennas Supported by Base: 10
No. of Active Transceiver Ports: 2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver
PC Programming Port: 2 LAN RJ45
Relay Port: DB15, supports one relay assigned to the SA out
Partyline A ,B,C,D (each): XLR-3F, on/off termination switch, Clear-Com and RTS compatible
Partyline Power On/Off: A/B, C/D paired
Partyline Output Voltage: 26 – 28VDC, 800mA per pair (A/B or C/D)
4-Wire/Matrix Connection: 4 RJ-45
Program Input: XLR-3F, transformer isolated, line-level input
Stage Announce Output: XLR-3M, transformer isolated, line-level output
Front Panel Headset: 4-pin male and 5-pin female options
Front Panel Displays: 4 OLED’s with encoders and assignable soft keys
Front Panel Indicators: Antenna Status, Beltpack Status
External Power Supply Connection: 12VDC
Base Station Programming/Editing: Push-to-enter rotary encoder

Power

Input: 100-240V AC, 1.4A max
Output: 12V DC, 60W, 5A
Current Draw: 12V, 4A max, 48W max

Dimensions

1.75 x 19.0 x 10.2 in (HxWxD)
(44 x 483 x 259 mm)

Weight

5.57 lbs (2.5 kg)
